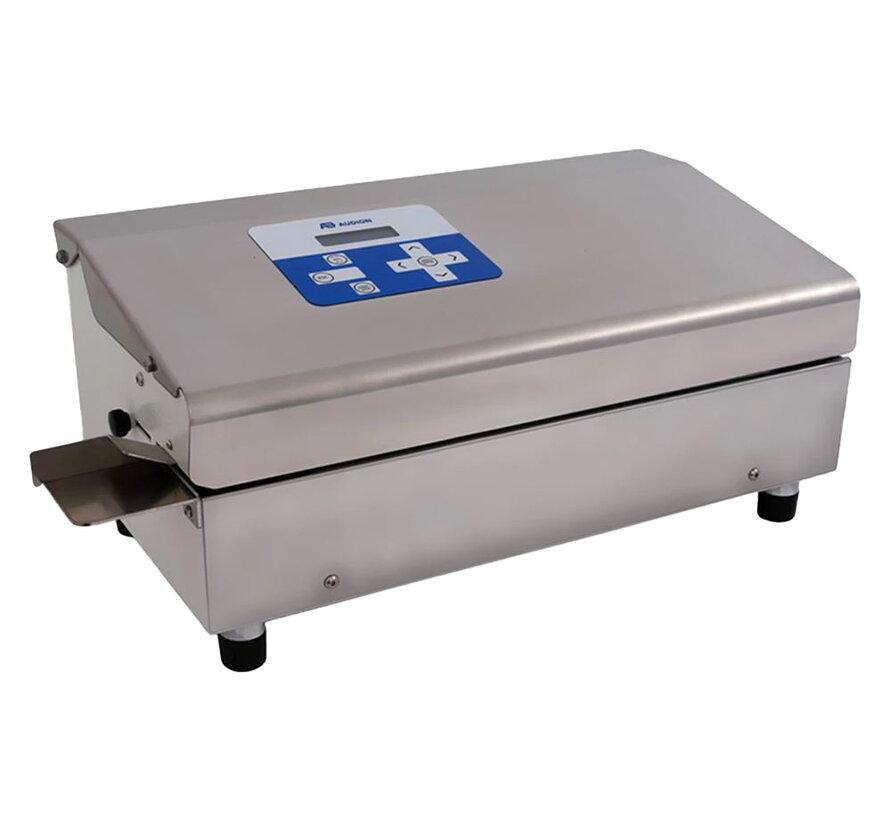

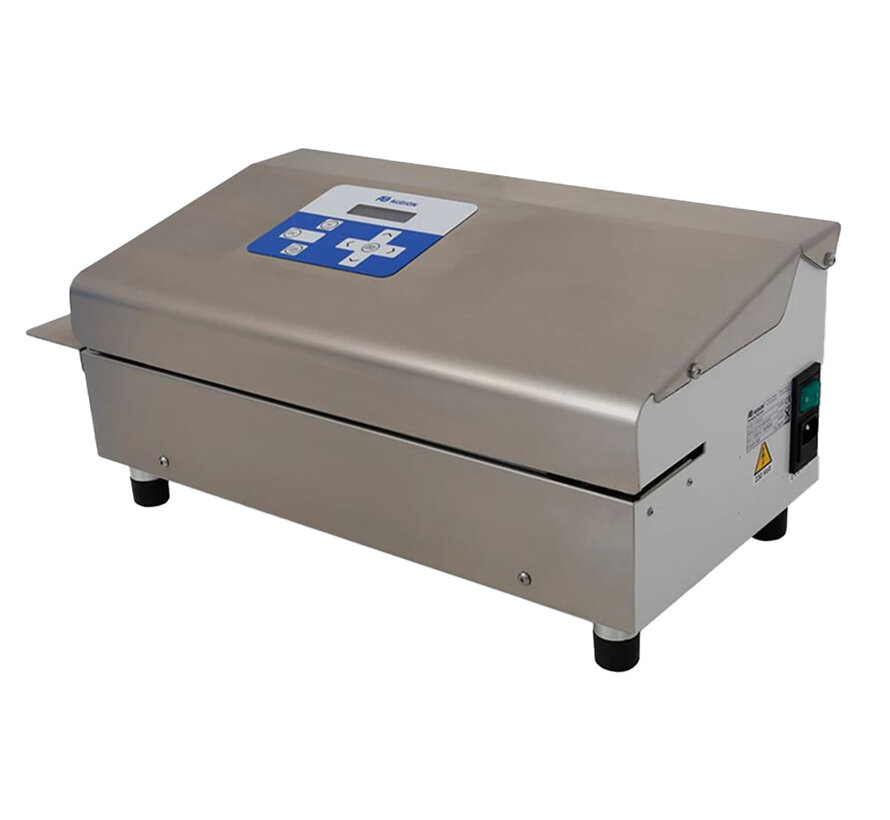

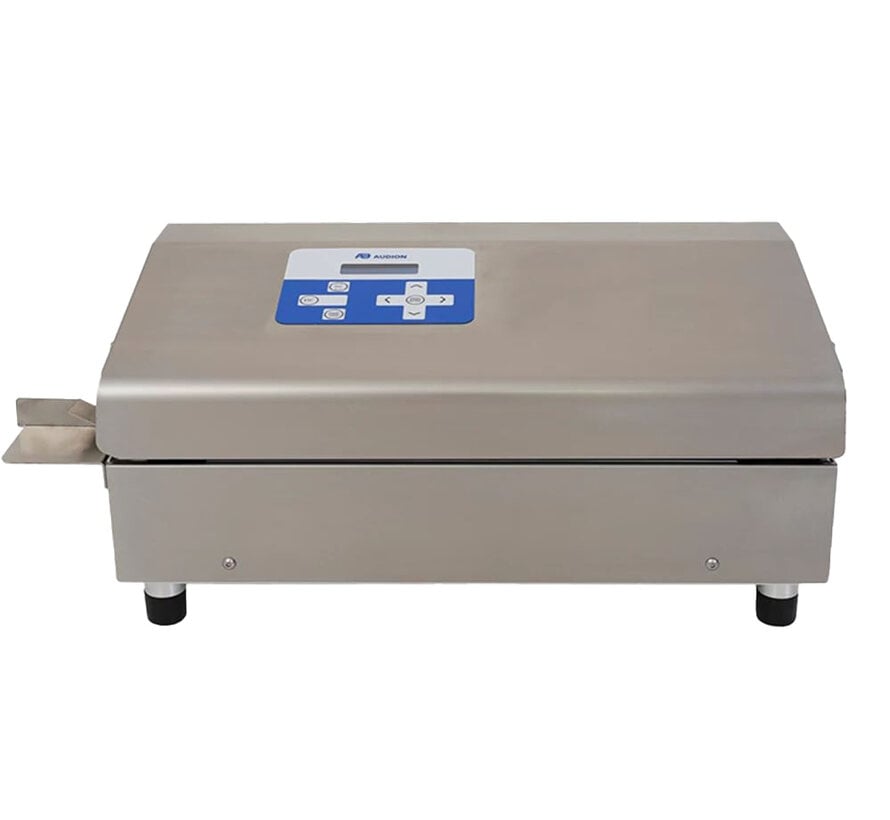

Audion Contimed D 660 continuous cleanroom band sealer
The Audion Contimed D 660 stainless steel band sealer seals PE, PP, PA/PE, header cards, and other heat-sealable aluminium laminate bags.
The Contimed D 660 continuous band sealers offer a reliable solution for creating strong, durable 9 mm seals in demanding environments. This rotary sealer is designed for precision and efficiency, with a constant throughput speed of 8 metres per minute ensuring high productivity. Thanks to the stainless steel housing, the device is durable and easy to clean, which is essential for maintaining hygiene within controlled environments.
Accurate control and validation
The technical precision of the Audion D 660 is reflected in the digital temperature control with an accuracy of ±1°C and an adjustable temperature alarm. This ensures a consistent seal quality up to 220°C, which is crucial for critical packaging applications. Furthermore, the machine is compatible with DIN 58953-7 and EN 868-5 standards, making it highly suitable for medical packaging and other applications where strict regulatory compliance is required.
| Device type | Continuous band sealer |
|---|---|
| Seal type | 9 mm serrated seal |
| Seal length | Unlimited |
| Throughput speed | 8 m/minute |
| Maximum film thickness | 2 x 0.10 mm (200 microns) |
| Dimensions (L x W x H) | 554 x 270 x 237 mm |
| Housing material | Stainless steel |

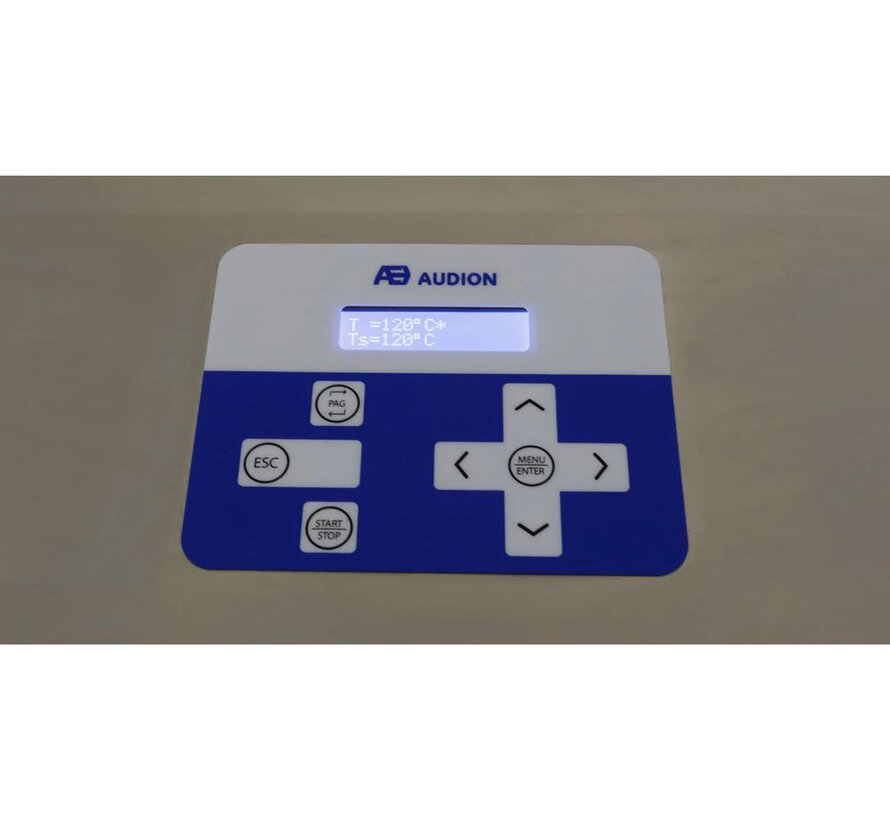

| Operation | LCD screen with 2 lines of 16 characters each |
| Temperature range | 10 - 220°C (± 1%) |
| Seal pressure | Automatically controlled (85N) |
| Power | 500 Watt |
| Connection | 230V-1ph-50/60 Hz 16 A |
| Suitable materials | PE, PP, PVC, multi-layer bags, medical bags, bags with header cards |
| Application areas | High tech, Cleanroom, Pharmaceutical production, Food processing, Logistics |
| Conformity | DIN 58953-7 and EN 868-5 |
Ease of use and process optimisation
The automatic adjustment of the seal pressure ensures optimal adhesion for varying film thicknesses up to 200 microns. To save energy and extend the lifespan of the components, the machine is equipped with a cool-run function that starts as soon as production is finished. For more complex processes, the Contimed D 660 can be expanded with optional accessories such as a stainless steel work table, roller conveyor, or conveyor belt to facilitate the throughput of heavier products.
For extensive technical details or information about specific accessories, we recommend consulting the product datasheet. This band sealer fits seamlessly with other packaging solutions such as the Audion Industrial Sealmaster series for a complete setup of your packaging line.
Do you have questions about the integration of the Contimed D 660 into your specific process or do you have special requests? Contact one of our product specialists for expert advice.
