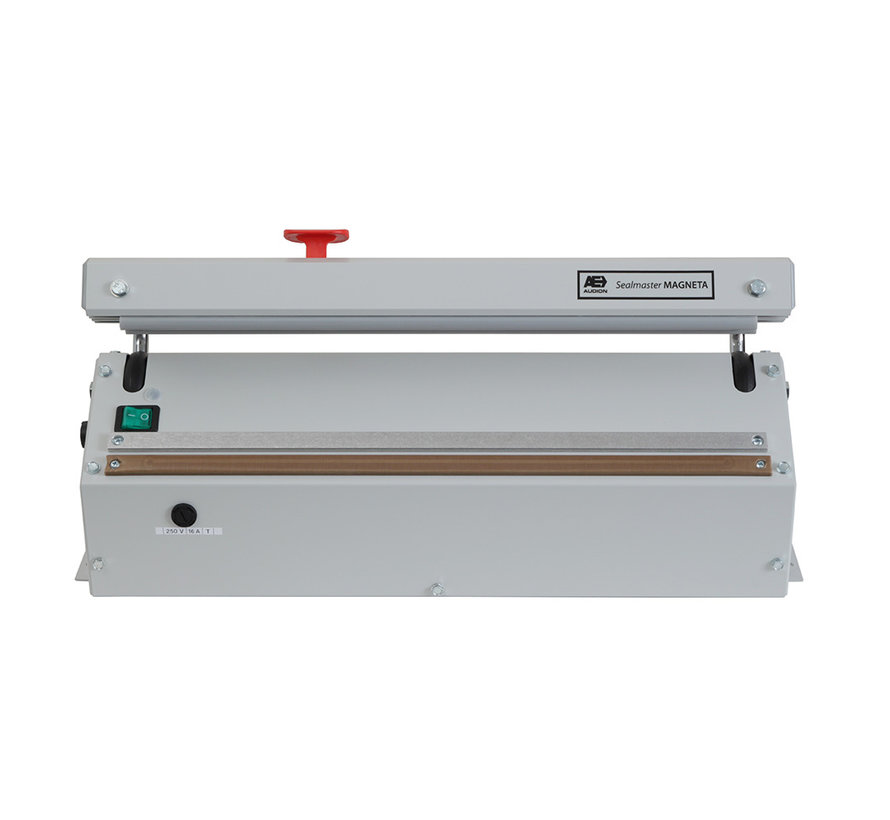

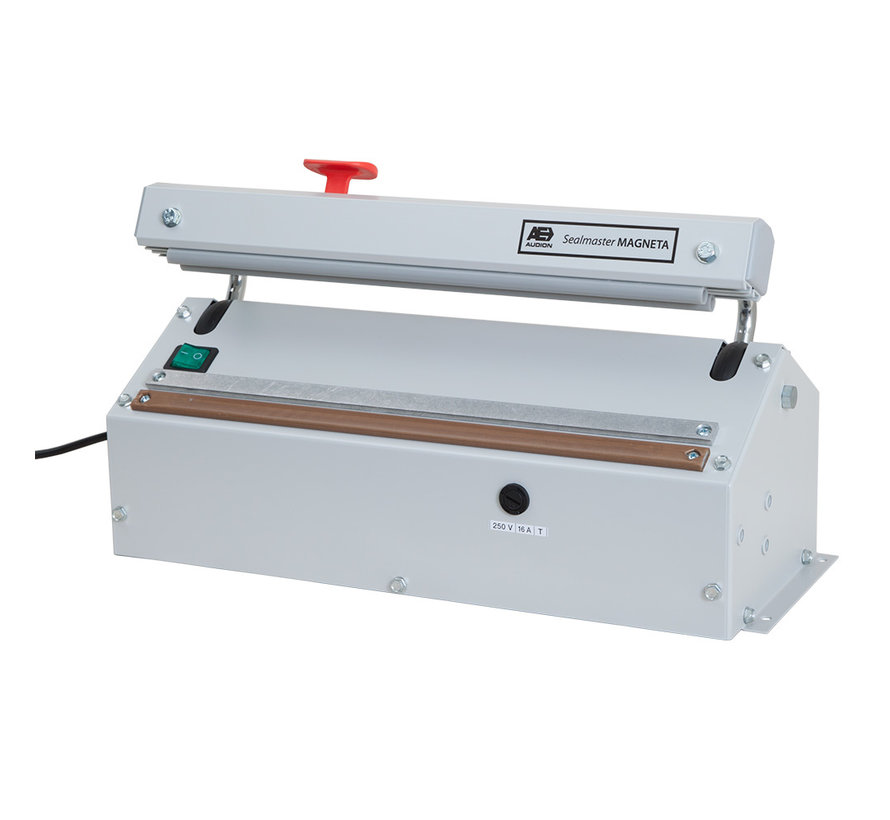

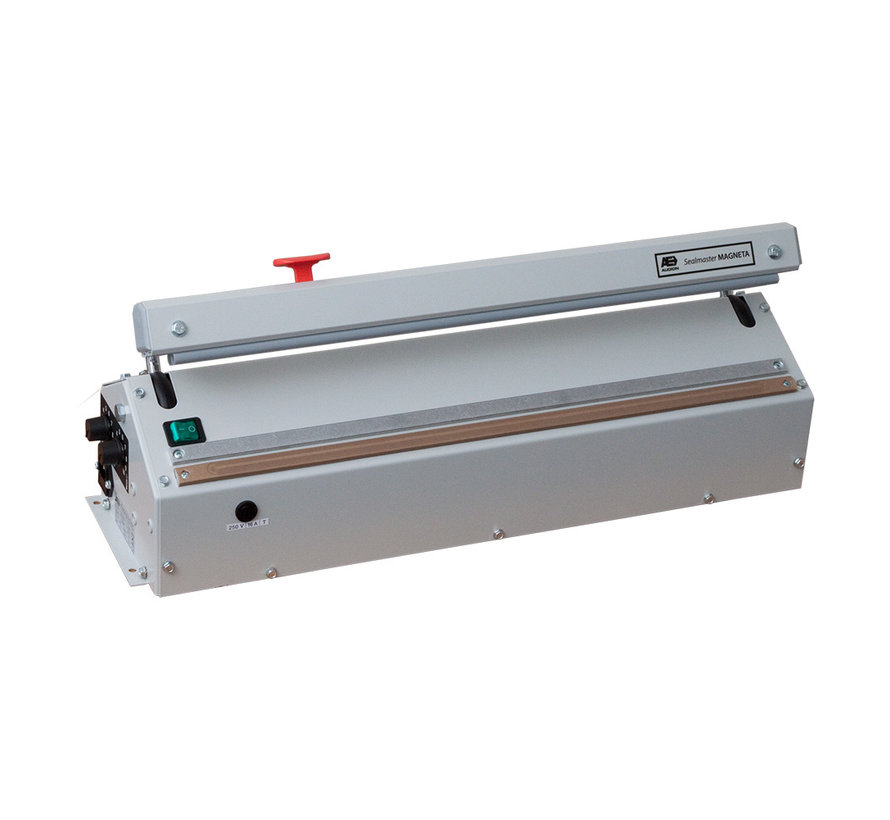

Cleanroom table sealer Audion Magneta MG, 321, 421, 521, 621 impulse sealers
Professional manual impulse sealer with 3 mm seal width, suitable for cleanroom and industrial packaging environments.
The Audion Magneta 321 MG, 421 MG, 521 MG and 621 MG are extremely suitable for sealing various products such as ready-made bags and tubular film. The advantage of an impulse sealer from the Magneta series is the built-in electromagnet that holds the seal arm in the downward position until the set seal and cooling time have elapsed, after which the arm automatically springs open again. These user-friendly and safe machines are ideal for packaging small and medium-sized batches.
Depending on the chosen model from the Magneta MG series, a length of 320, 420, 520 or 620 mm can be sealed at a time. Silicone pressure rubbers on the underside of the seal bar ensure that both film halves are pressed firmly together for a tight seal seam of 3 mm wide. When working with tubular film, packaging of any desired length can be made by using the secured cutting device in the seal arm (red button) You cut the bag at the same time as making the bottom seal. You then fill the bag and seal it at the top.
After the set seal time (setting 1-10) has elapsed, the heating of the seal wire stops. The seal bar must then be kept closed (pressed down) for a moment to allow the seal to cool; after the set cooling time, the seal bar opens automatically. This entire process takes a few seconds and makes the Audion Magneta sealers very efficient.
The Audion Magneta 321 MG, 421 MG, 521 MG and 621 MG sealing devices are suitable for sealing the following film with a maximum thickness of 2 x 0.15 mm (150 micron):
- PP (Polypropylene)
- PE (Polyethylene)
- Thin laminate film
The table sealers from the Audion Magneta MG series have a robust design and the housing is suitable for cleaning with the most common disinfection products

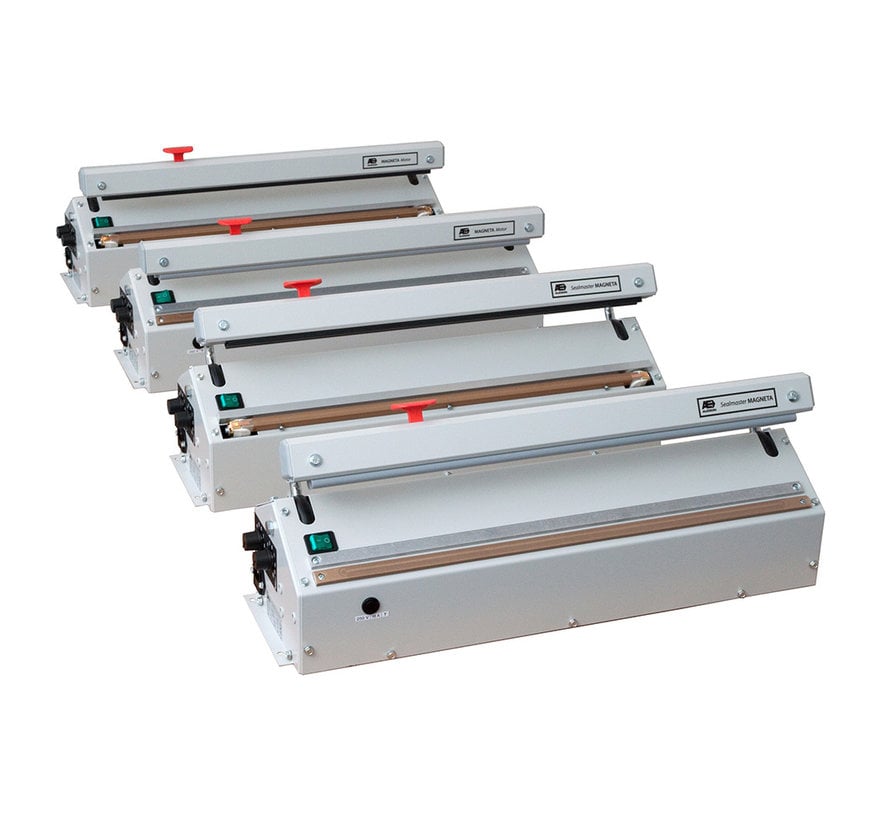

The models from the Magneta MG series differ in maximum power and dimensions:
- 321 MG: 700 Watt 460 x 200 x 270 mm (L x W x H) 13 KG
- 421 MG: 600 Watt 560 x 200 x 270 mm (L x W x H) 15 KG
- 521 MG: 500 Watt 660 x 200 x 270 mm (L x W x H) 16 KG
- 621 MG: 750 Watt 760 x 200 x 270 mm (L x W x H) 17 KG
Impulse sealer VS. continuous sealers:
The biggest difference between an impulse sealer and a continuous sealer is the fact that an impulse sealer only requires power at the moment it is switched on and there is no warm-up time. Impulse sealers can remain connected to the power supply during the working day and are immediately ready for use. After use, the seal bars cool down immediately.
The Audion Magneta MG table sealers can be used for packaging:
- High tech components
- Liquid
- Granulate
- Powder
Accessory set:

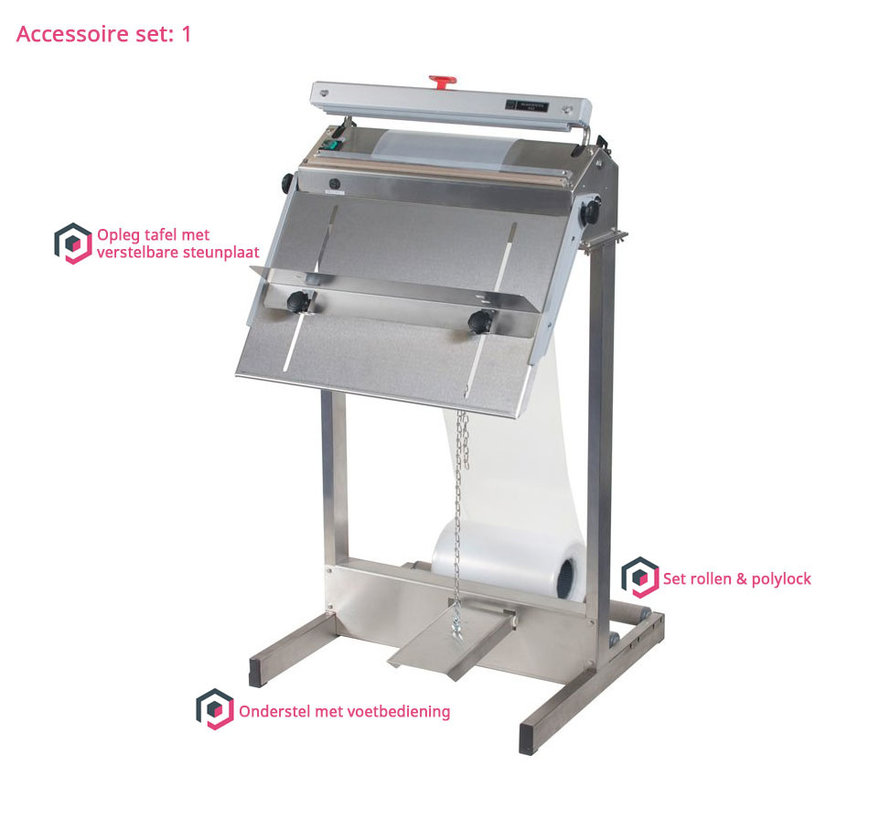

- Set 1: Support table with adjustable support plate + Rolloflux & Polylock.

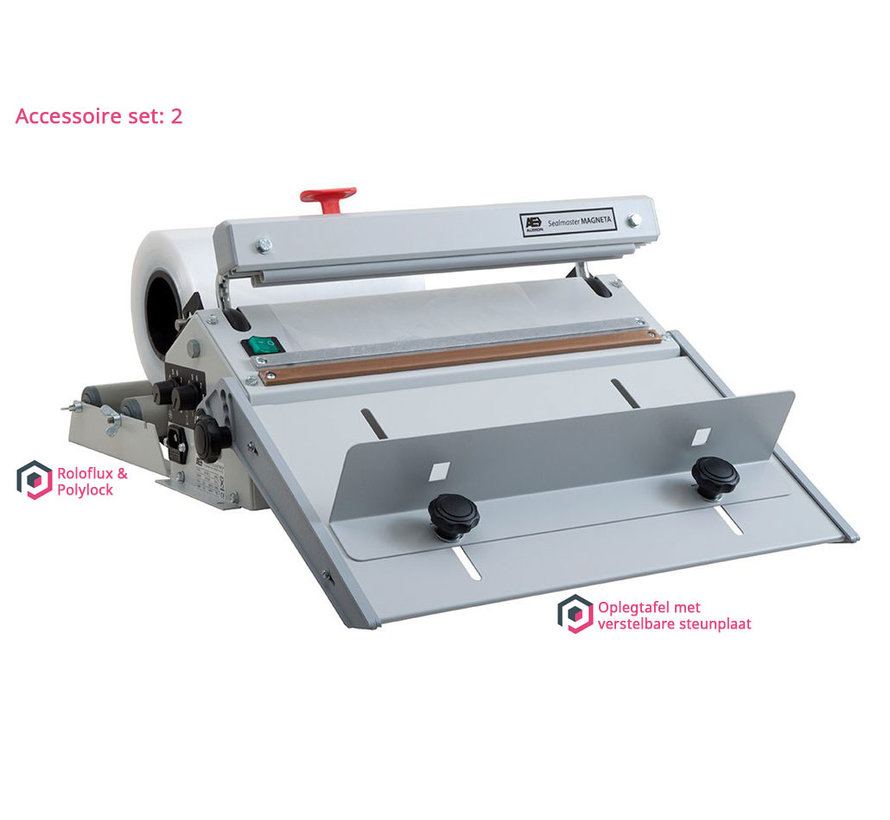

- Set 2: Support table with adjustable support plate + stand with foot operation + Set of rolls & Polylock.
Separately available accessories:
- Support table with adjustable support plate.
- Stand with foot operation.
- Rolloflux & Polylock
- Set of rolls & Polylock
Recommendation when using the Audion Magneta 321MG, 421MG, 521MG, 621MG: Test the setting (seal time) of the sealer on the material to be sealed in advance and adjust where necessary. Is the seal not strong enough? Then the knob should be set to a higher value (1-10), so that the seal time is extended to a maximum of 3 seconds. If the material burns, the seal time should be shortened. For material 2 x 0.15 mm (150 micron) thick, setting 6 8 is recommended.
