AJR UV inspection lamp LED10000P+EU - ASML 12NC 4022.479.00764

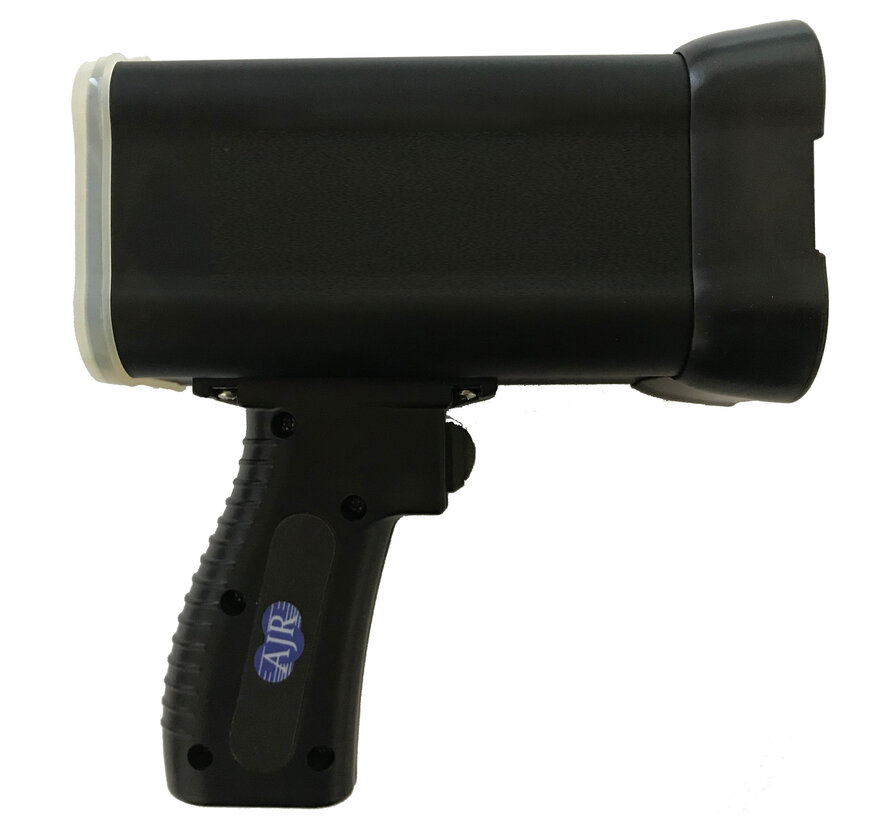

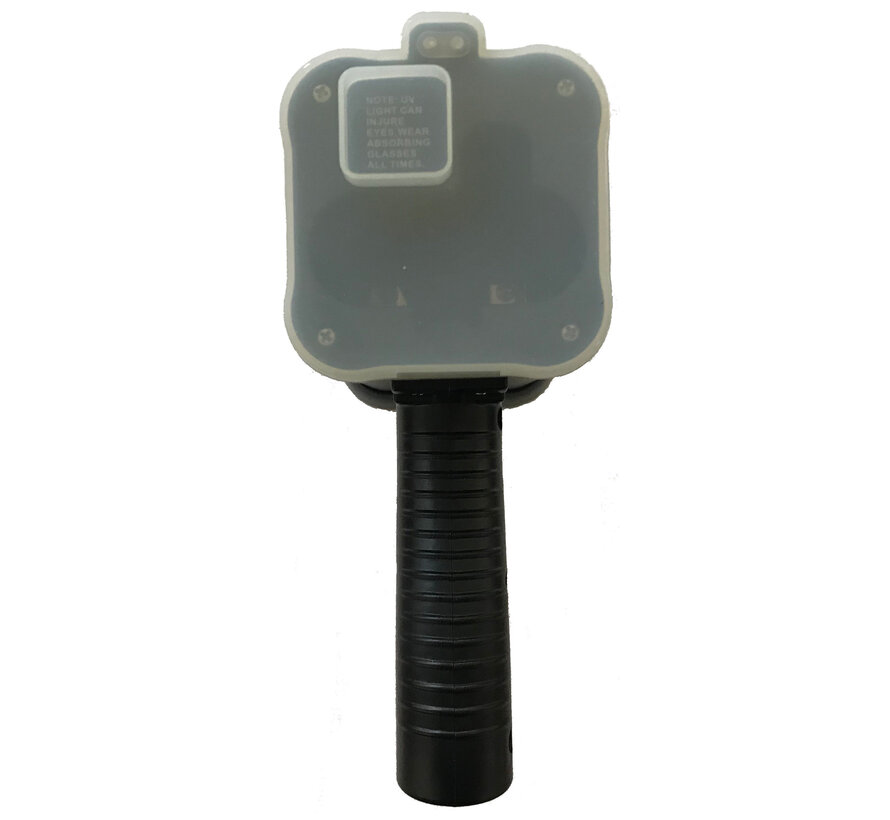

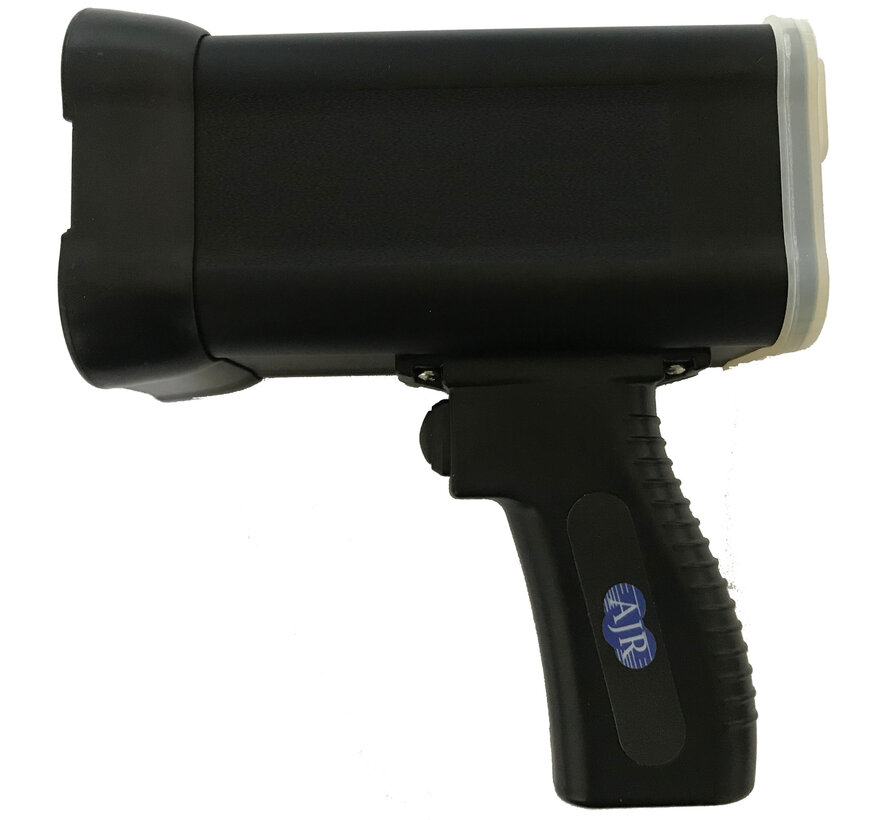

The compact AJR UV 10000P+EU (4x blacklight) wireless lamp with a battery life of 3 to 4 hours. Developed for professional inspections for particles and organic contamination.
The AJR UV 10000P+EU (4x blacklight) offers a powerful solution for precise inspections in controlled environments where the detection of micro-contamination is crucial. This professional UV LED lamp has been selected by ProCleanroom for its reliable performance and specific suitability for critical processes in laboratories and high-tech production facilities. With a stable wavelength of 365nm (+/-3%), the lamp delivers the necessary intensity to make particles visible that remain invisible to the naked eye.
Efficiency and ergonomics in the workplace
The design of the AJR UV 10000P+EU (4x blacklight) is focused on long-term intensive use without interruptions. Thanks to the powerful 2200mAh battery, the inspection lamp can be used for three to four hours consecutively without requiring intermediate cooling. The set is supplied as standard with a second battery, allowing a full working day to be covered by simply swapping the batteries. With a weight of only 498 grams including the battery, the lamp is light enough to minimise physical strain on the wrist during repeated inspection rounds.| Light source | 4x UV-LED 365nm +/-3% (UVA) LED, 1000uW/cm² |
|---|---|
| Colour | Black |

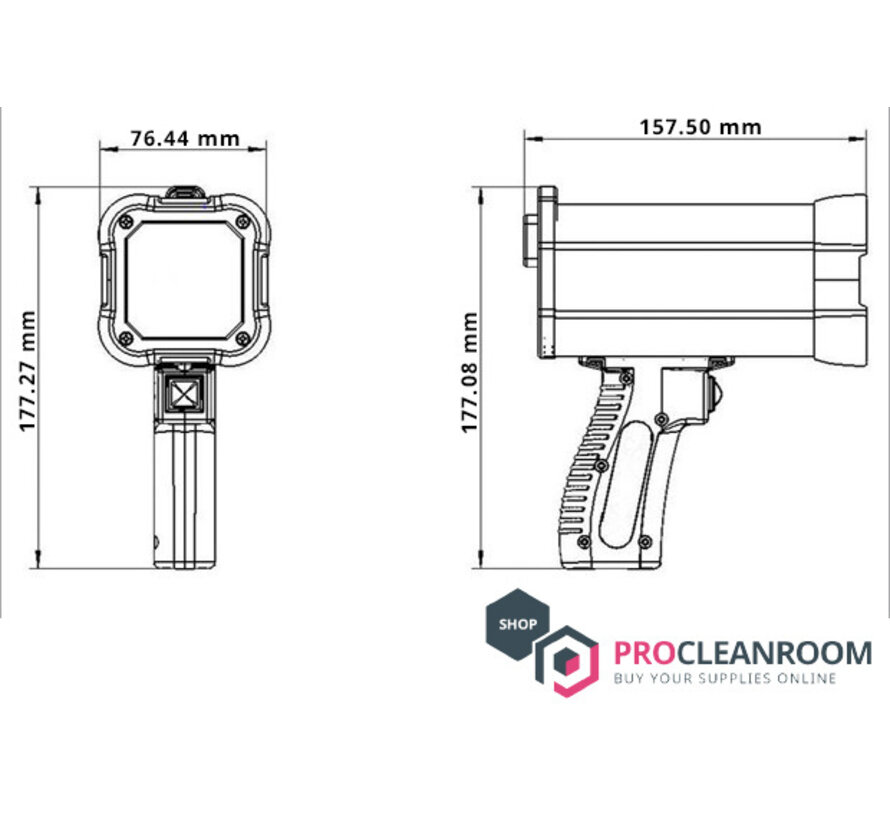

| Dimensions Length | 157 mm |
| Dimensions Depth | 76 mm |
| Dimensions Height | 177 mm |
| Material | Plastic |
| Weight | 498 grams (including battery) |
| Battery capacity | 2200 mAh 12.6V, rechargeable |
| Operating time | 3-4 operational hours |
| Charger power supply | 100 - 240 V - 50 - 60 HZ |
| LED lifespan | 30,000 hours |
| Warranty | 1 year on electrical components |
Application areas and configuration
This inspection lamp is ideally suited for use in the semiconductor industry, pharmaceutical production, and biotechnological facilities. For use in the most critical environments, you can optionally choose a special cleanroom carrying case. This version is equipped with a high-quality 3D-printed plastic insert instead of foam and is supplied double cleanroom packed to prevent contamination. Please consult the available product datasheet for additional technical details or accessories.Advantages of the AJR UV 10000P+EU
- Constant UV output for reliable inspection results
- Immediate usability without cooling periods
- High mobility due to wireless design and low weight

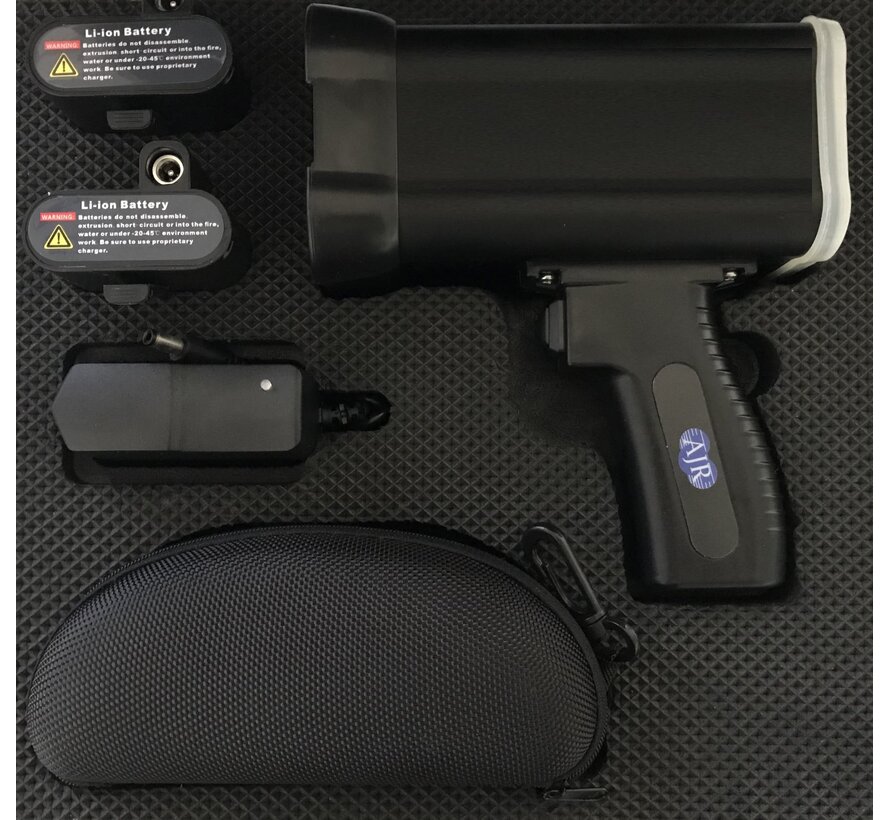

- Complete delivery including UV inspection goggles and robust case
