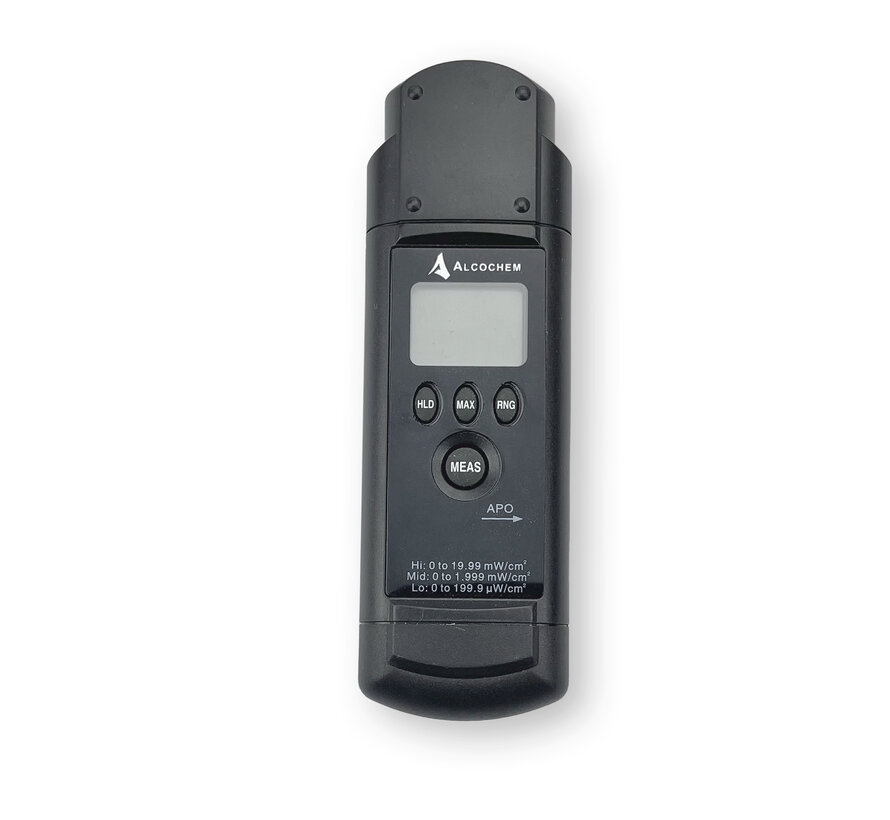

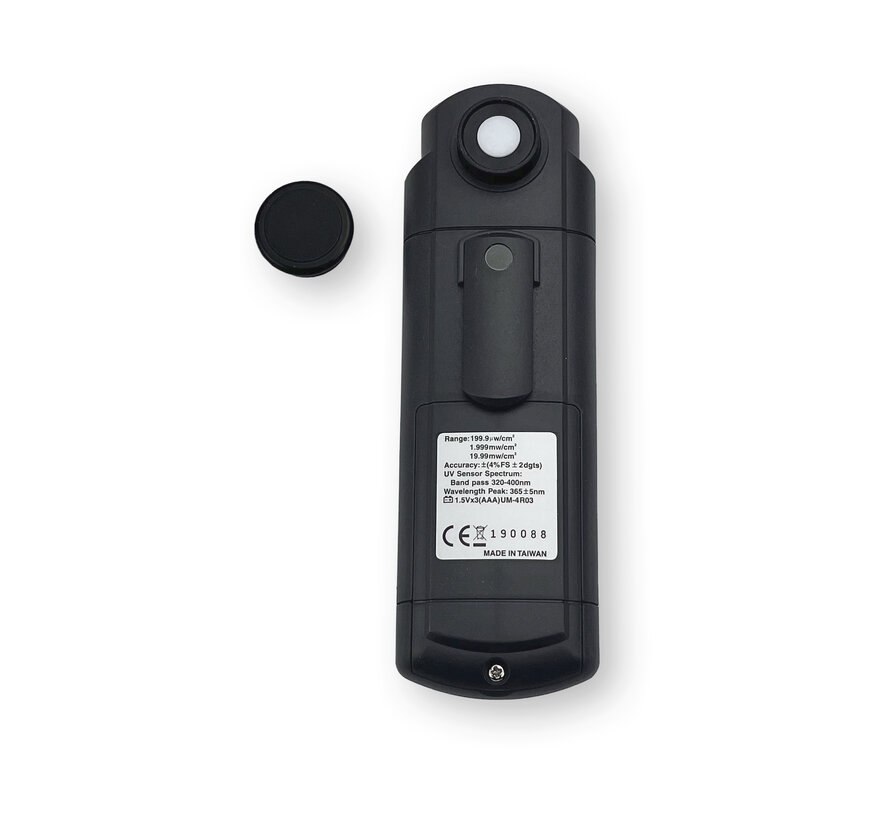

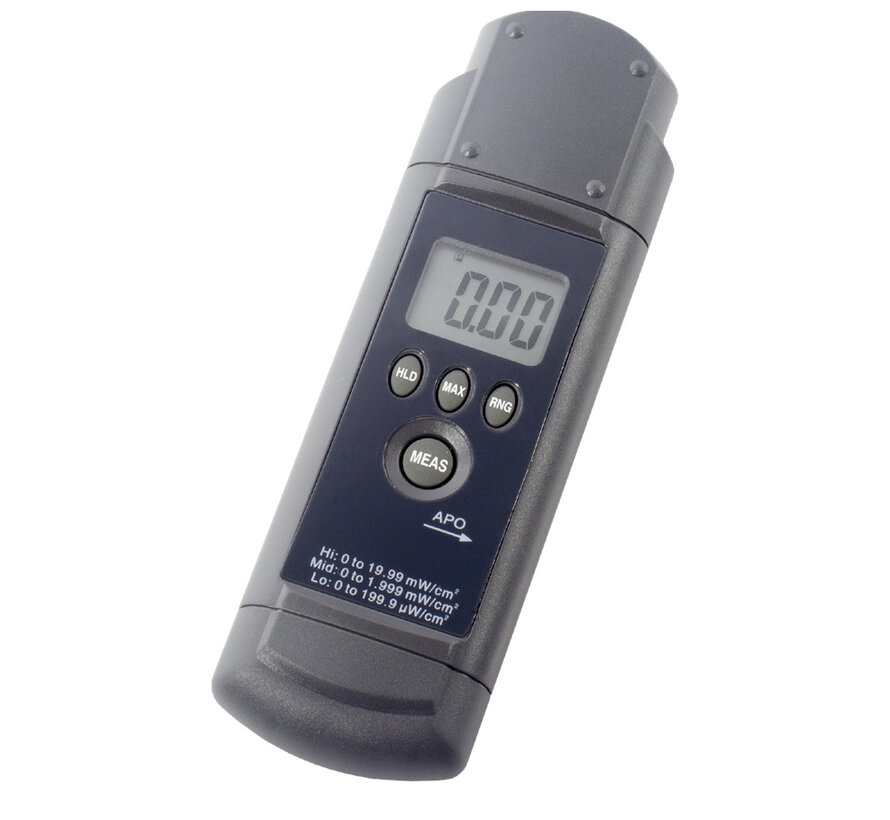

UV-A intensity meter for UV-A inspection lamps
Portable UV-A intensity meter for professional use. With this UV-A intensity meter, the intensity of the UV-A inspection lamp can be tested prior to a UV inspection.
Maintain the continuity of your inspection process by accurately verifying the light output of your inspection lamps with the UV-A intensity meter. This meter is essential for professionals in cleanroom technology who require certainty about the exact UV-A values at the moment of use, in accordance with applicable process regulations.
Accurate UV-A measurements
The UV-A intensity meter is designed for daily use in critical environments. Thanks to its smooth design and specific choice of materials, the instrument is suitable for use in cleanrooms up to ISO class 5. The 3.5-inch LCD display ensures clear reading, while the light weight of the housing promotes ease of use during frequent checks. With a measurement frequency of 2.5 times per second and a spectral sensitivity between 320 and 400 nm, this device offers the precision required for industrial inspections.| Brand | Alcochem |
|---|---|
| Display | 3.5-inch LCD |
| Measurement range High | 0 to 19.99 mW/cm² |
| Measurement range Medium | 0 to 1.999 mW/cm² |
| Measurement range Low | 0 to 199.9 µW/cm² |
| Spectral range | 320 - 400 nm |
| Peak sensitivity | 365 +/- 5 nm |
| Accuracy | Max 4% of the maximum scale |
| Measurement speed | 2.5 times per second |
| Suitable for ISO class | ISO class 5 |
| Operating temperature | 0 ºC to 50 ºC at 75% relative humidity |
| Storage conditions | -20 ºC to 60 ºC / 0 to 80% relative humidity |
| Calibration conditions | 23 ºC +/- 5 ºC at 75% relative humidity |
| Dimensions | 155 x 48 x 24 mm |
| Power supply | 3 x 1.5V (AAA) |
| Battery life | ± 200 operational hours |
