UV-A inspection unit for high tech components and hand hygiene

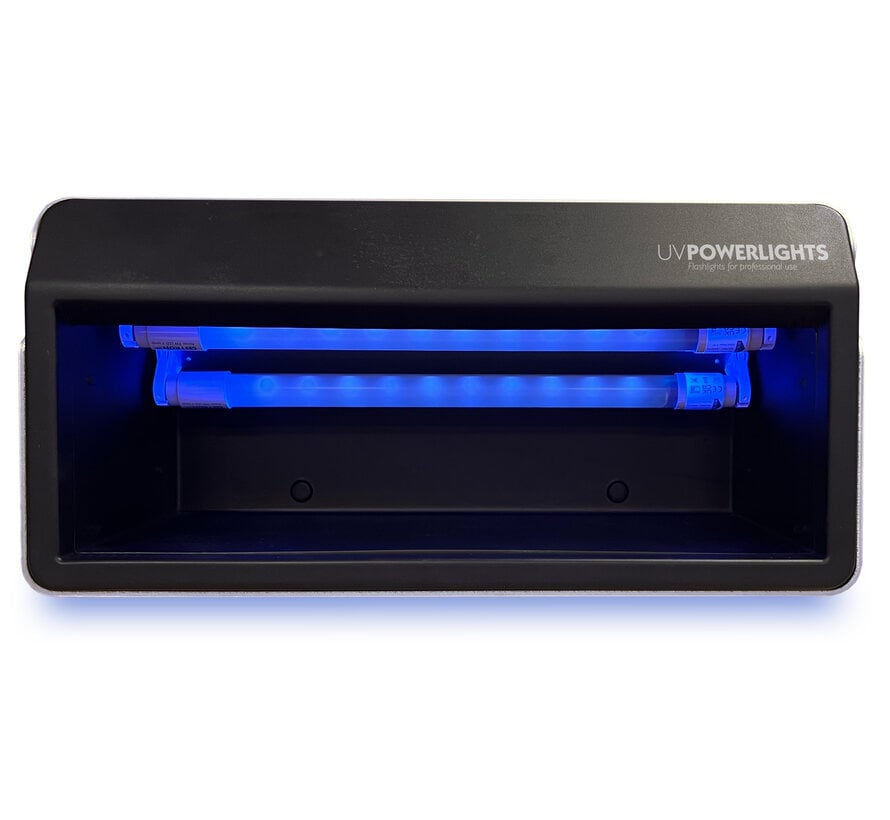

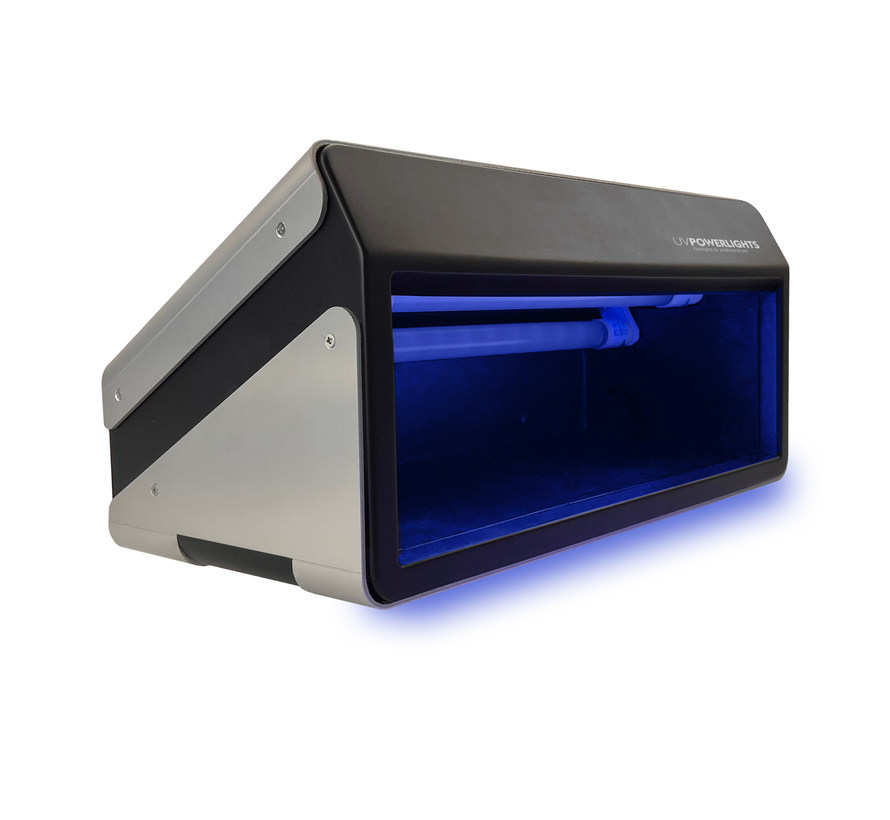

UV-A inspection unit for professional use. The UV inspection unit is a table model made of aluminium, which can be used for inspection purposes of, among other things, High Tech components and hand hygiene.
The UV-A inspection unit from Alcochem is a powerful instrument for the precise detection of particles and contamination on High Tech components and gloves. Thanks to its compact design and homogeneous light distribution, this system is an indispensable component for quality control within cleanroom environments.
Optimal particle detection and hygiene control

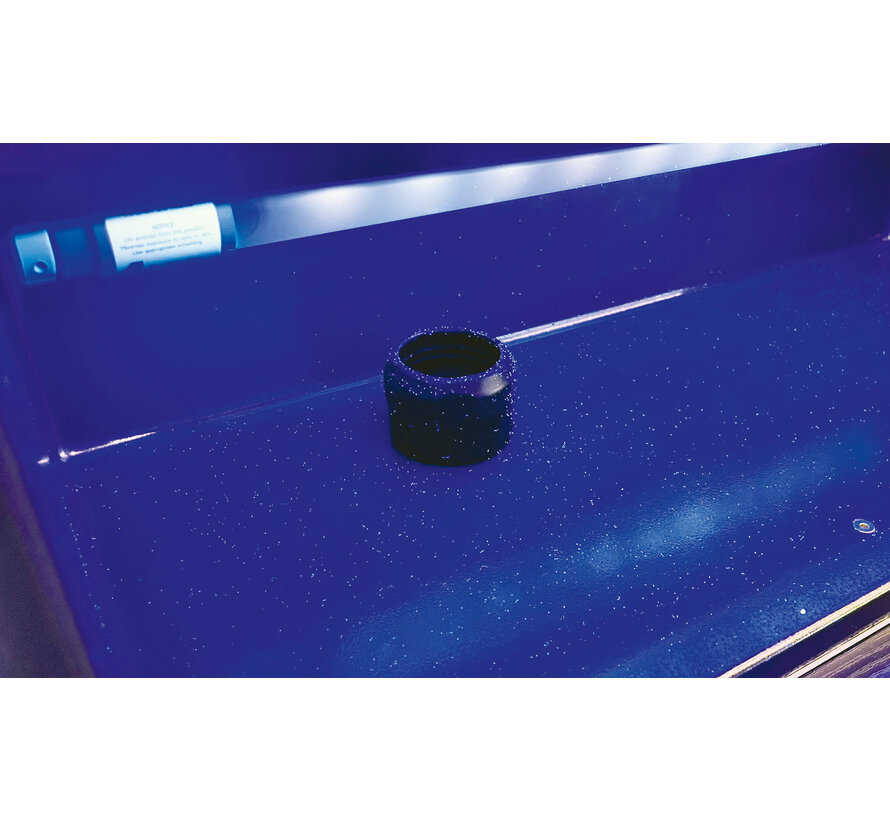

Equipped with four powerful Astron II UV LED lamps, the unit offers a work area of 48 x 20 cm that is evenly illuminated by an internal diffuser. The 365 nm wavelength is specifically chosen because it is the most effective for making unwanted liquids and micron particles visible. The design allows operators to keep both hands free for inspection, while an integrated side drawer provides space for storing swabs or wipes.| Light source | 4x 9W ASTRON LED II lamps (36 Watt) |
|---|---|
| Wavelength | 365 nm |
| Lamp lifespan | > 25,000 hours |
| Inspection surface | 48 x 20 cm (L x D) |
| Housing dimensions | 530 mm (L) |
| 250 mm (D) | |
| 135 mm (H) / 260 mm (H) front | |
| Material | Aluminium |
| Colour | Black / Aluminium |
| Power supply | 100-240 V - 50-60 HZ |
| Cable length | 1.5 m with EU plug |
| Warranty | 1 year on electrical components |
