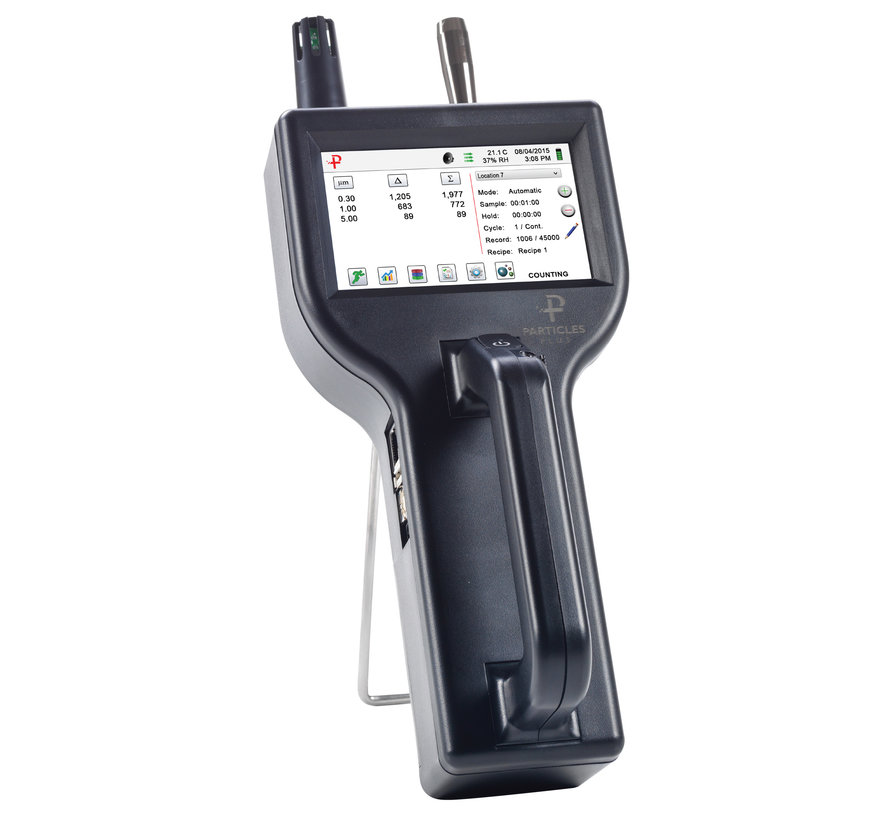

Particles Plus 8303 portable particle counter-3 channels
The Particles Plus 8303 portable particle counter measures particles from 0.3 μm to 25.0 μm in diameter with a flow rate of 0.1 CFM (2.83 LPM).
The Particles Plus 8303 - 3 channels is an advanced handheld particle counter that combines precise measurements with a patented power management system for an extra-long battery life during intensive use in controlled environments. Thanks to the large data buffer and the intuitive colour touchscreen, this instrument is designed for professionals who require reliable data acquisition and direct on-site reporting.
Precise monitoring and compliance
This instrument simultaneously measures particles on three user-configurable channels, ranging from 0.3 µm to 25.0 µm. The Particles Plus 8303 supports both a particle count mode and a mass concentration mode (µg/m³), making it widely applicable for air quality research and cleanroom validation. Users can directly generate reports according to ISO 14644-1, EU GMP Annex 1, or FS 209E standards. The laser diode technology guarantees a long service life, while the internal pump with automatic flow control ensures a constant sample volume of 2.83 LPM.
| Channels | 3 |
|---|---|
| Particle size range | 0.3 to 25.0 μm |
| Factory calibration | 0.3 – 0.5 and 5.0 μm (adjustable middle channel) |
| Sample volume | 2.83 LPM (0.1 CFM) |
| Counting efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm according to JIS |
| Maximum concentration | 4,000,000 Particles/ft³ @ 5% coincidence loss |
| Light source | Long-life laser diode |
| Zero count | <1 count / 5 minutes (<2 particles / ft³) according to ISO 21501-4 & JIS |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) colour touchscreen |
| Memory | 45,000 records, 1,000 locations, and 50 recipes |
| Communication | USB |
| Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Battery | Replaceable, Li-ion |
| Battery life | 10 hours |
| Charging time | <2 hours |
| Alarm | Adjustable audio alarm |
| Housing | Lightweight and impact-resistant plastic |
| Certification | ISO 21501-4 and JIS B9921 |
| Calibration | NIST traceable |
Ease of use in critical environments
The impact-resistant plastic housing and the integrated handle allow for one-handed operation, which is essential during inspections in laboratories and high-tech production environments. The interface is easy to configure, with settings and recipes that can be effortlessly exchanged between different instruments. For extensive analysis, data can be exported to the Particles Plus data download software. The instrument is also easy to clean, which contributes to the integrity of the cleanroom environment.
Please consult the product datasheet for additional technical details or optional accessories, such as the temperature and humidity sensor. This instrument falls within our category of portable particle counters and is excellent for combining with other measuring equipment for cleanroom validation.
Do you have specific questions about the integration of the Particles Plus 8303 into your workflow or would you like to know more about our calibration services? Contact one of our product specialists for expert advice.
