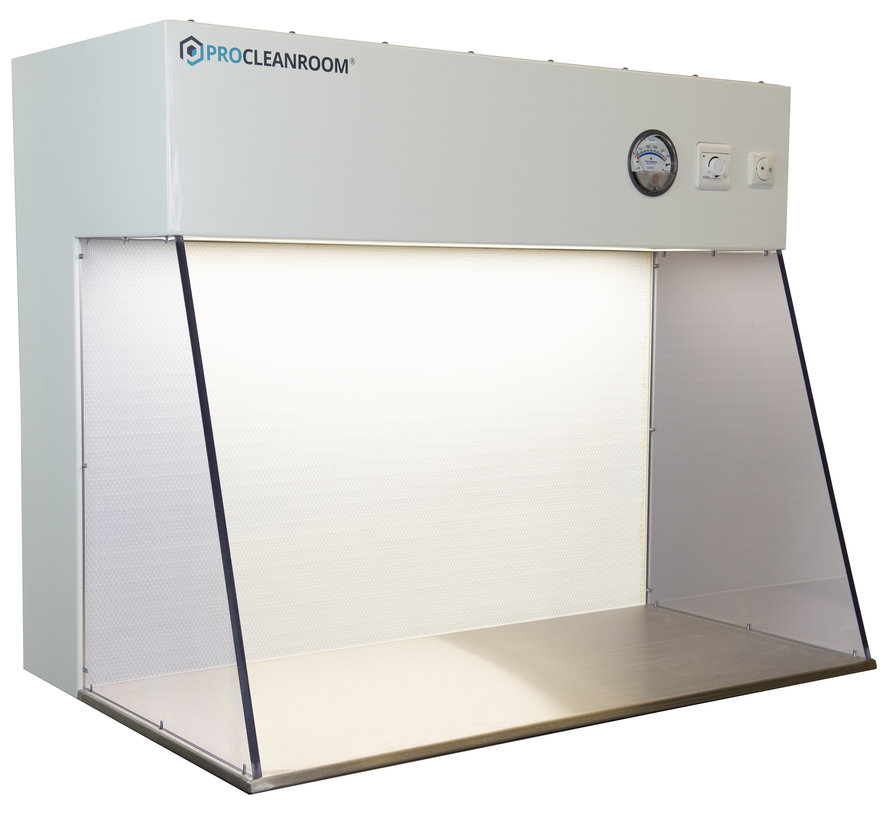

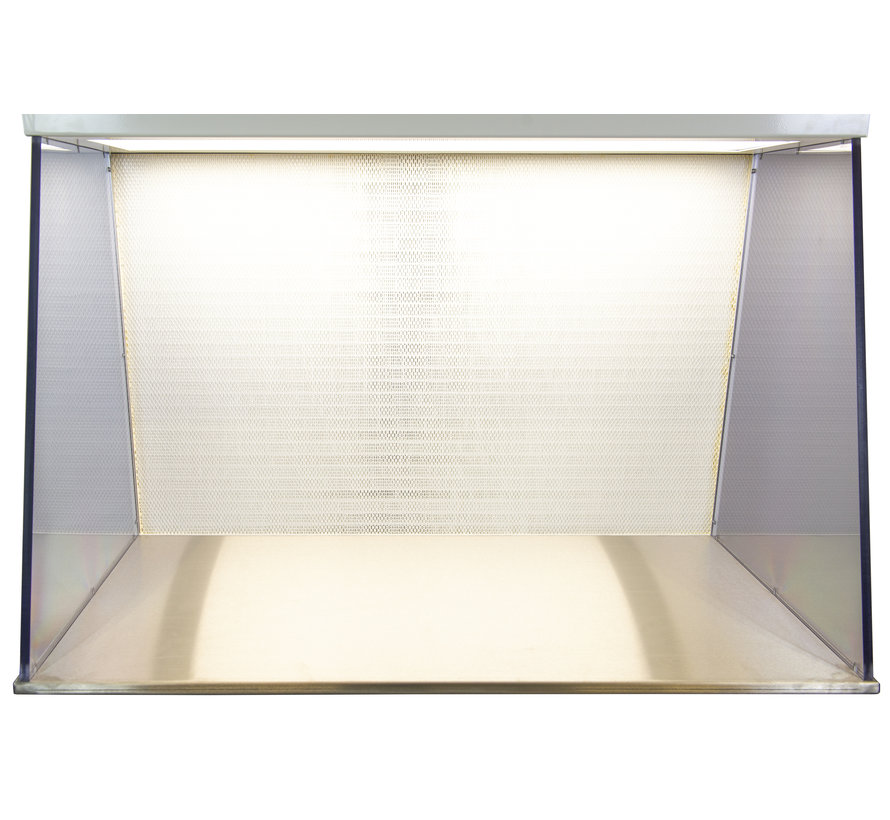

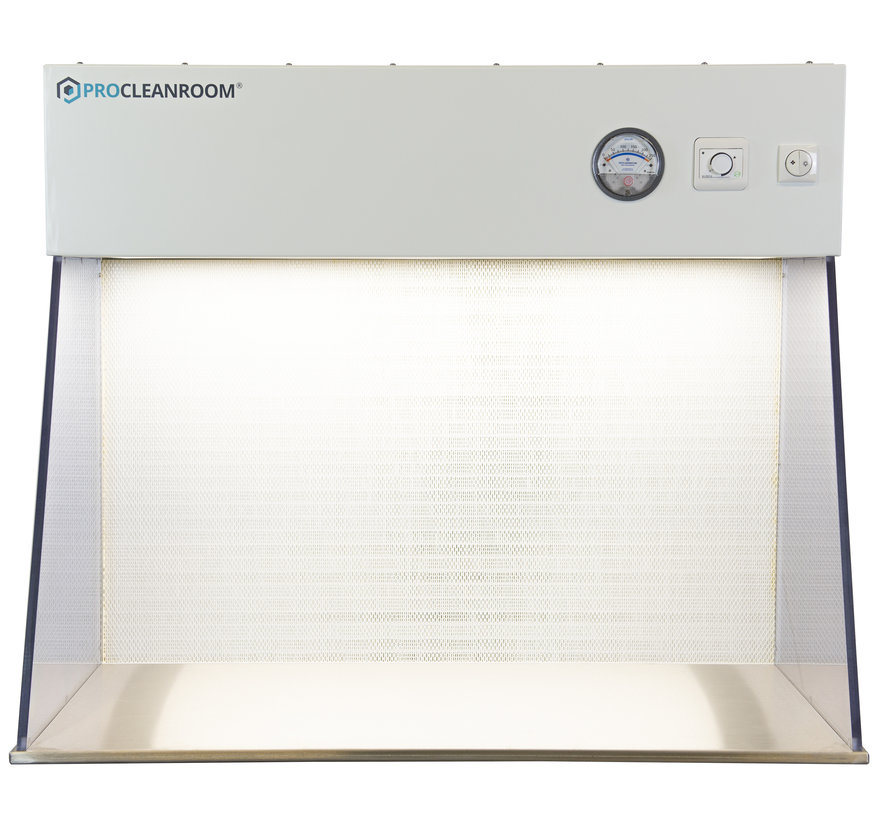

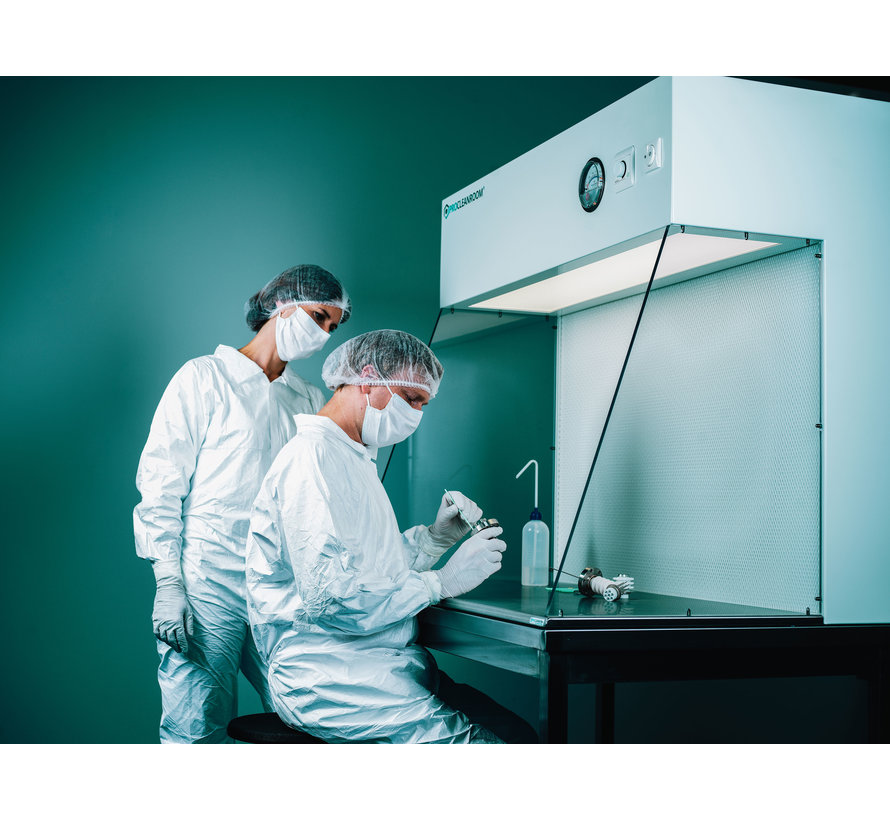

Crossflow cabinet benchtop type HLFU1250
The flow cabinet generates a horizontal unidirectional flow (crossflow), ensuring that the product and process within the flow cabinet are optimally protected against contamination in the form of particles and/or micro-organisms.
The HLFU-1250 from ProCleanroom is equipped as standard with a HEPA absolute filter, which offers >99.995% efficient filtration down to 0.3 microns. The HLFU-1250 crossflow cabinet thus achieves an ISO class 5 or cleaner working environment (according to ISO14644-1) and is extremely suitable for sectors where product or process protection is necessary. This includes the high-tech and electronics industry, research institutions, and laboratories.
In a laminar flow cabinet with ISO-5 classification, products (ASML) grade 4 and 2 can be cleaned, assembled, and packaged.

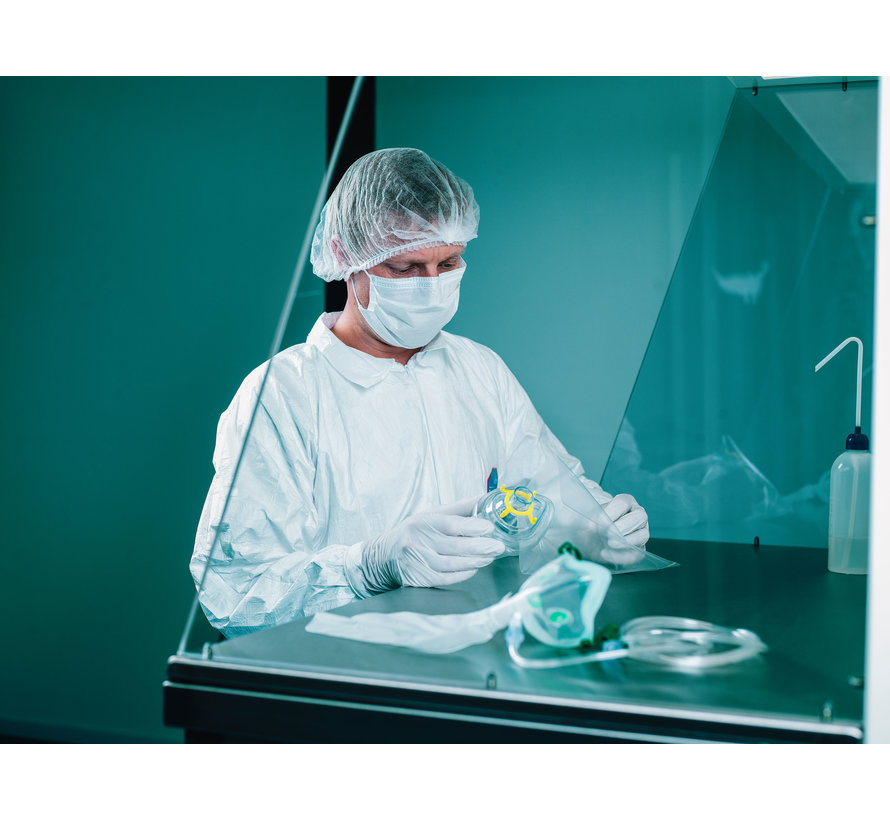

By placing the crossflow cabinets from the HLFU series in an indoor environment (warehouse, laboratories, cleanroom, etc.), an ultra-clean mini-environment is created. Within this environment, critical processes (such as sampling, assembling, cleaning, packaging, etc.) can be performed optimally.

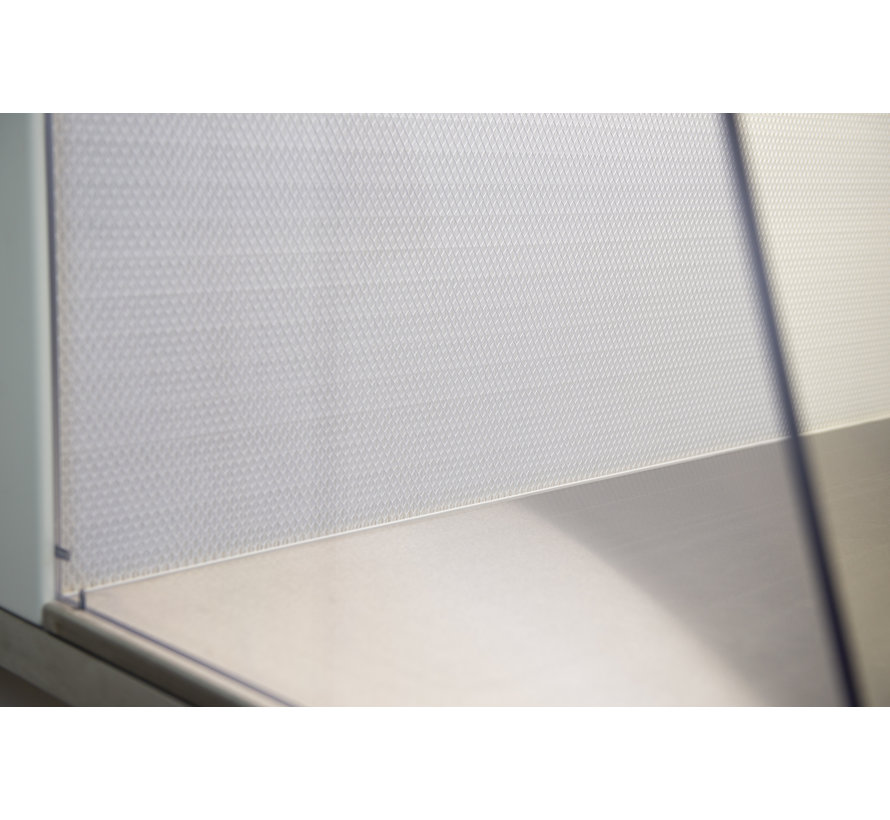

The superstructure and rear plenum of the HLFU1250 crossflow cabinet are made of high-quality and durable powder-coated steel in colour RAL 9016. The side walls are manufactured from transparent Polycarbonate. The flow cabinet is equipped as standard with a stainless steel 304 worktop, which can optionally be adapted to HPL (Trespa)
Is crossflow or downflow the best choice for your application? Check our white paper here with more information on this subject.
Key features of the HLFU-1250 crossflow cabinet:
- ISO-class 5 compatible workstation (ISO14644-1)
- Powder-coated superstructure and rear plenum (RAL9016)
- Transparent Polycarbonate side screens
- Benchtop model – to be placed on an existing frame or table

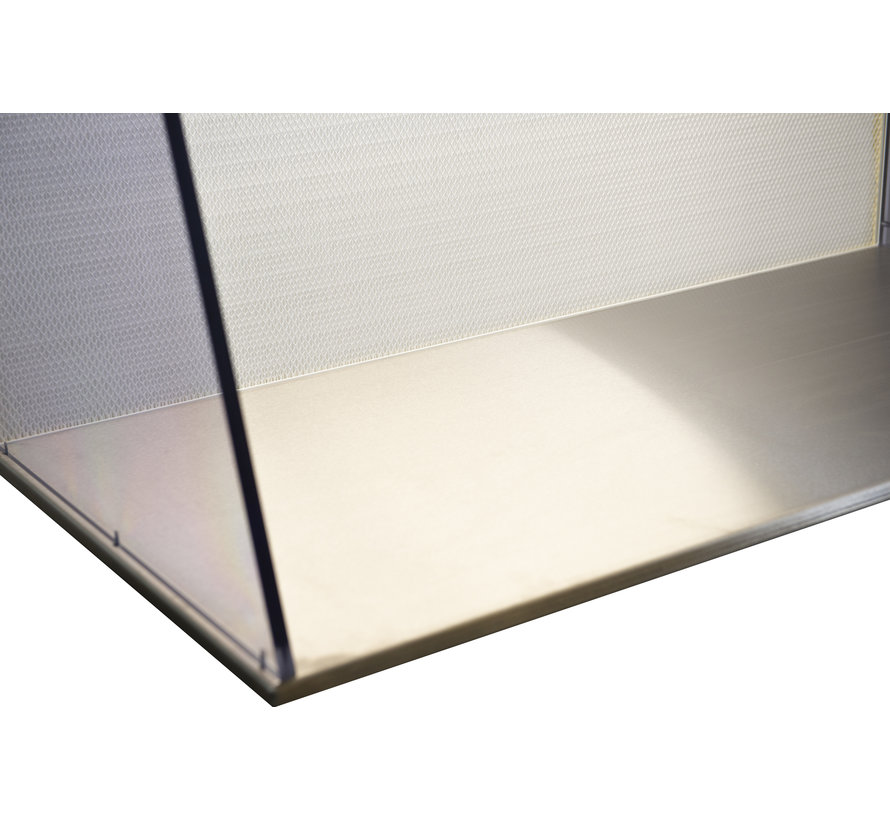

- Stainless steel 304 worktop is standard
- Internal workspace dimensions: 1250x600x750mm (WxDxH)

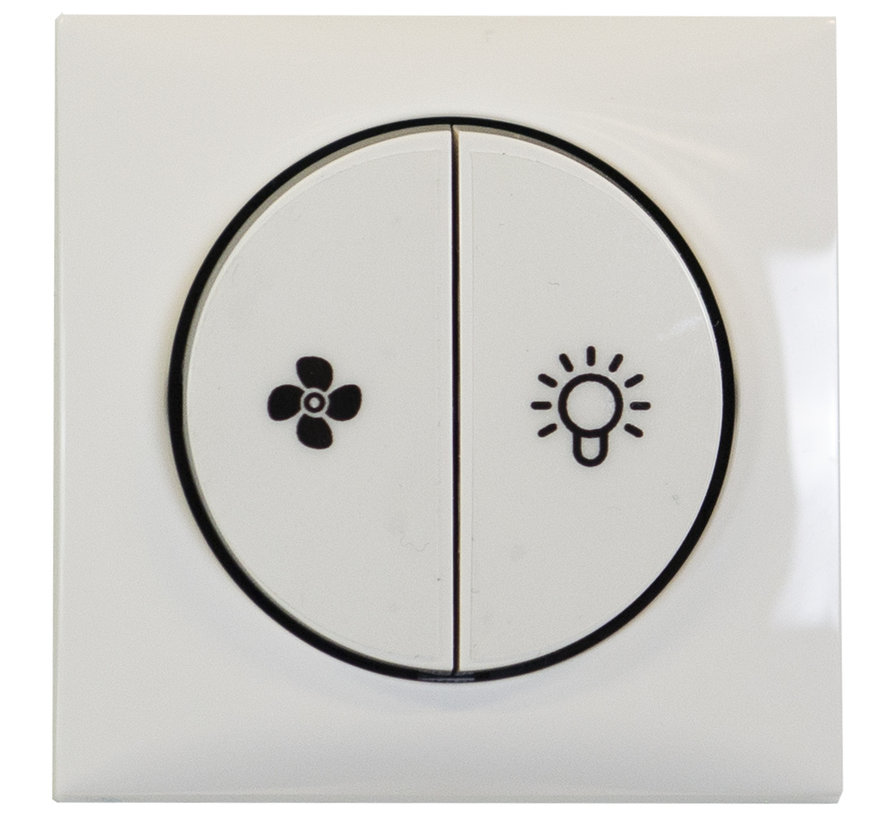

- LED lighting with switch

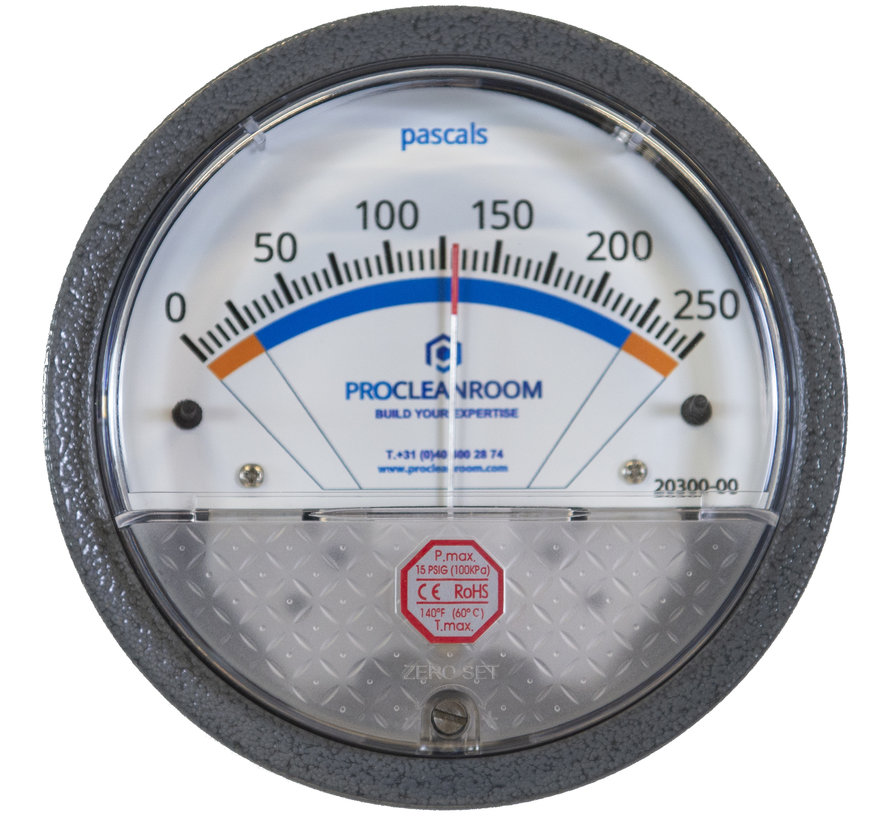

- Magnehelic pressure differential gauge

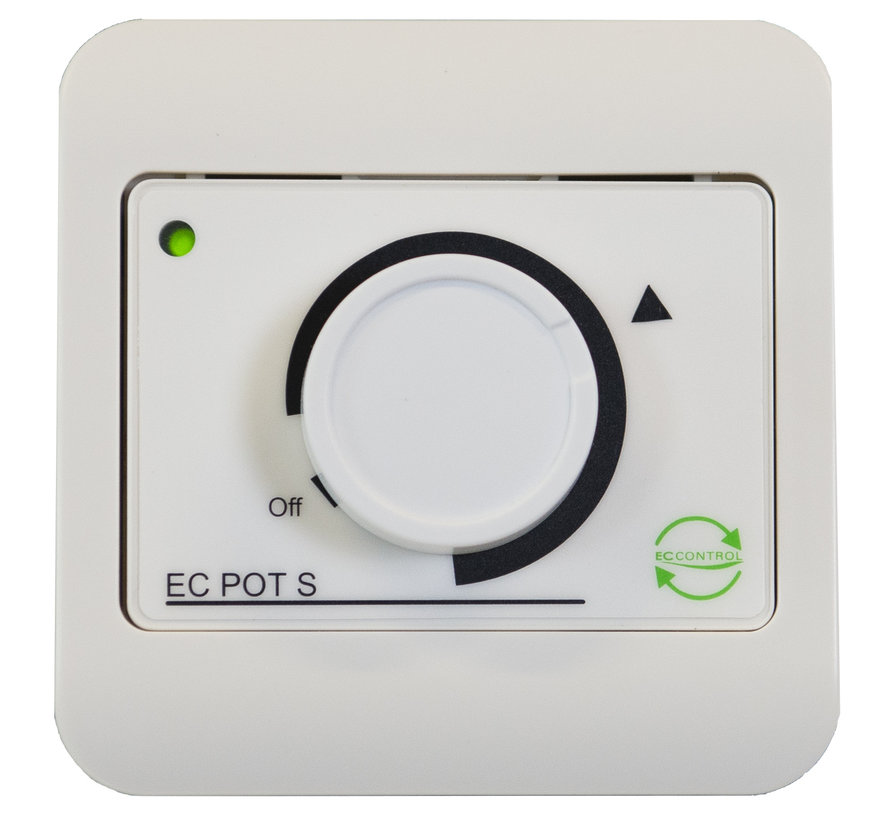

- Speed controller, infinitely variable 0-100% for adjustable air speed, via switch
- Choice: HPL (Trespa) worktop instead of stainless steel 304
By placing an HLFU-1250 laminar flow cabinet, an ultra-clean workstation is created. Within this environment, critical processes (such as sampling, cleaning, packaging, etc.) can be performed optimally.
Key benefits of the HLFU-1250 crossflow cabinet:
- Standard dimensions, competitively priced
- Very fast delivery (from stock, while stocks last)
- Plug & play ready for use
- Low energy consumption and negligible heat load due to efficient EC motor technology
- Lowest operational costs in the market
- User-friendly and reliable
- Ergonomic, durable design and easy to clean
Installation and validation
Depending on the chosen option of self-collection or delivery on-site (within the Benelux), the engineers at ProCleanroom will arrange the ISO validation in advance or at your location.
The flow cabinet is supplied with a validation report. After delivery, we offer periodic service and revalidation of the flow cabinet if desired.
Customisation
Many applications are unique and require a special approach. As a manufacturer, ProCleanroom has its own engineering department with CAD/CAM and thus offers the possibility of customisation. Our product specialists are at your disposal to discuss your application. Look here for our custom solutions.
Overview of options on request:
- ULPA absolute filter instead of HEPA for ISO3/4 applications
- Integration of ionisation bars for anti-static / ESD application
- Integration of wall sockets, network connections, air, gas, and water
- Blackout in connection with UV inspection for contamination
- UV option for sterilisation
- HPL (Trespa) worktop instead of stainless steel 304 worktop
- Different requirements? Please contact us!
Discount applicable to higher quantities.
